VINSA 1060PLUS  HD Graphic Tablet Monitor With 12 Shortcut Key & 8192 Level Stylus, Digital Pen Tablet with Screen for Painting

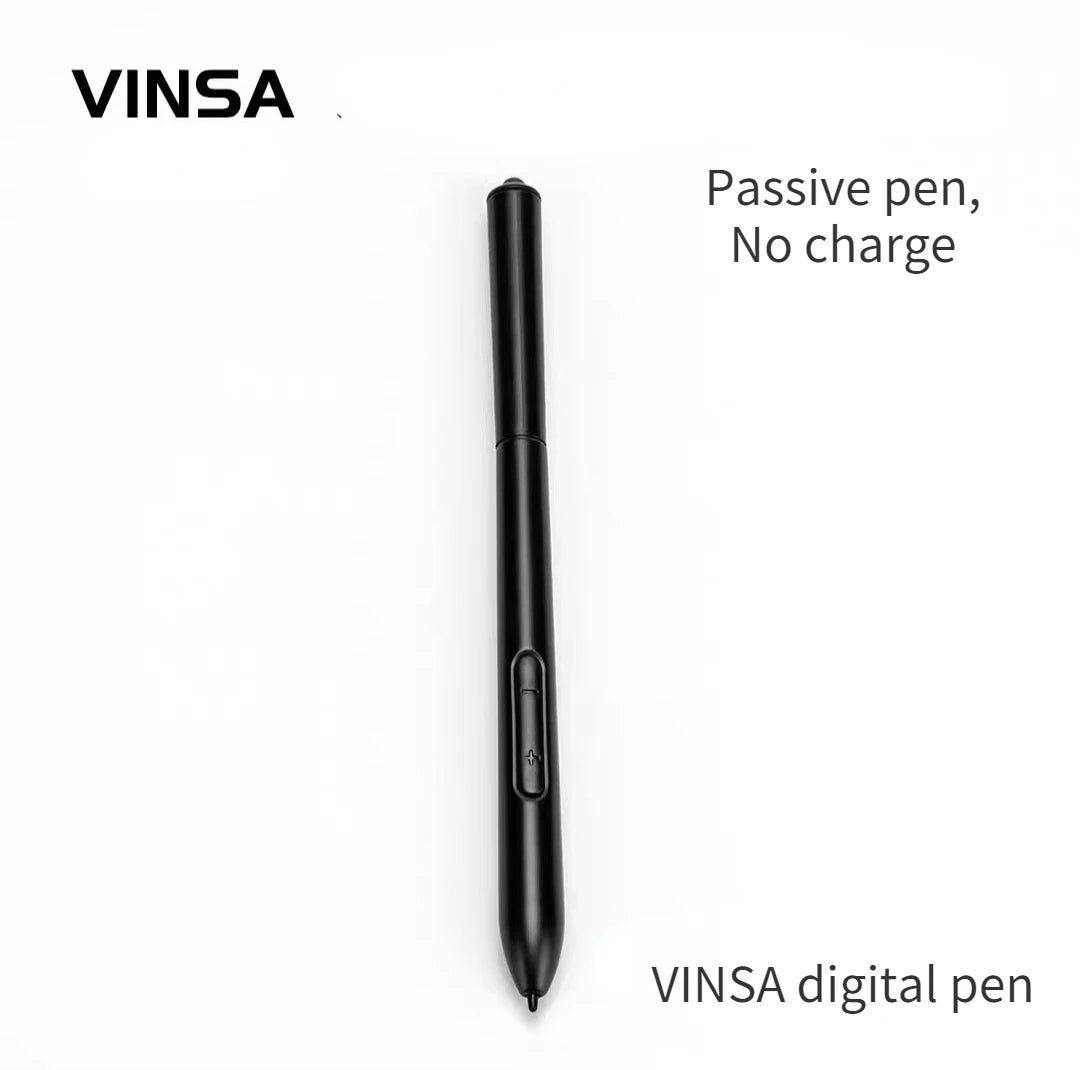

1.[8192 LEVELS PASSIVE PEN]

-With 8192 Levels Pen Pressure, it enables accurate ,smooth, neat and natural lines during digital creation. With the battery free technology, no need to charge the pen or replace battery anymore, which is environment-friendly. The silicone covers the hand holding part of the pen, which can get your hands no pain and no discomfort after prolonged creation.



2.[10 SHORTCUT KEYS]

-There are 10 shortcut keys available to be customized according to your own creative habits, like zoom in/out, scroll up and down, and more, to accelerate your work efficiency.



3.[LIGHT WEIGHT & PORTABLE]

-With 652g  net weight, 10 inch 1060PLUS  is engineered for great convenience with carefree creation experience, offering you sufficient working space. And it is easy to carry the pen display to anywhere you need, like the workplace, school, outdoor painting and a temporary trip so that you can use the tablet for on the go creation. You are free to record your inspiration without limits.



4.[IPS FULL HD SCREEN]

-Screen Resolution: 1920 x 1080(16:9)

Resolution:5080LPI

Report Rate: 266PPS

Display Area: 256.32 x 144.18mm(10.09*6 inch)

Accuracy:±0.5mm (Center) \ ±3mm(Corner)

Sensing Height:13mm

Signal Output: Mini HDMI&Type-C.

Viewing able: 89°/89°(H)/89°/89°(V) (Typ.)(CR＞10).



5.[OS SUPPORT& PROGRAM COMPATIBILITY]

-Seamlessly compatible with Win 7 or macOS 10.12 or above.  It is ideal for drawing, photography, animation, fashion, sketching, image editing, 3D sculpture, drawing beginners, painting enthusiasts, architectural designers ect.

And it is compatible with most painting software, like Adobe Photoshop, Illustrator, Clip Studio, Lightroom, Sketchbook Pro, Manga Studio, CorelPainter, FireAlpaca, OpenCanvas, Paint Tool Sai2, Krita and so on.





Portable Size

The 11.6 inches working area is definitely enough for your needs. Plus with 15mm thickness and 1.65kg weight, it's easy to carry together with your laptop in your backpack.. You are free to record your inspiration without limits.

Remarkable Screen

IPS LCD screen with 178°viewing angle, it provides you with a vast working area, allows you to see the screen in a very comfortable way. 1920*1080 full HD can present the details of your artwork with accuracy, deliver incredible visual clarity and color saturation.

DUAL/TRI MONITOR SUPPORT

Duplicated Mode: The PD1161 will display exact the same with your computer monitor. What you draw on PD1161, it will display on your computer monitor.

Windows OS: Press 'Windows+p' on keyboard----Check 'Duplicate'

Mac OS: System Preference-- Displays--Arrangement-- Check the ''Mirror Displays''

Extended Mode: PD1161 display the wall paper of PD1161 without programs on it. You can draw on PD1161 while computer monitor can display other things separately.

Windows OS: Press 'Windows+p' on keyboard----Check 'Duplicate'---Open GAOMON Driver Panel--Work Area---You will see options: Display 1/Display 2/All Displays--- Choose PD1161 1920*1080 one as work area, it is usually Display 2---Apply and OK.

Mac OS: System Preference-- Displays--Arrangement-- Uncheck the ''Mirror Displays''-- Open GAOMON Driver Panel--Work Area---You will see options: Display 1/Display 2/All Displays--- Choose PD1161 1920*1080 one as work area, it is usually Display 2---Apply and OK.

As for Tri-Monitor support, it depends on whether your computer graphic card support 3 monitors connected at the same time.If your computer supports it, please refer to above instruction for Dual monitor settings.

Notes:

1, Before installing driver, please uninstall all tablet drivers from your computer, and keep all antivirus program closed, after installation then restart your computer. You can download the driver from our official website: gaomon dot net

2. we cover 1 year warranty basing on non human made damages and accident damages, any assistance, feel free to contact us!

3. for Mac Mojave Users: Mac 10.14 new OS requires higher permission for newly downloaded programs. After Gaomon driver is installed, please open system preference---security &privacy---Please add "GaomonTable" and "TabletDriverAgent" into the list, to make sure the pen works properly in mac 10.14 new OS.

Product Parameter

Product Model: PD1161

Digital Pen: ArtPaint AP50

Screen Size: 11.6 Inches

Screen Resolution: 1920 x 1080(16:9)

Liquid Crystal Type: IPS

Dimension: 361.6 x 200 x 13 mm

Active Area: 256.32 x 144.18 mm

Contrast Ratio: 1000:1

Brightness: 220 cd/m2

Report Time: 25 ms

Resolution: 5080 LPI

Pressure Sensitivity: 8192 Levels

Reading Height: 10mm

Report Rate: 266 PPS

Net Weight: 866g

Gross Weight: 1.65 kg

Signal Interface: Mini HDMI,Type-C

Accuracy: ±0.5mm (Center) \ ±3mm(Corner)

Pen Technology: Battery Free Electromagnetic Resonance

Viewing Angle: 89deg/89deg (H)/89deg/89deg (V) (Typ.) (CR＞10)

OS Support: Windows 7 or later, macOS 10.12 or later

What's in the box?

Pen Display PD1161 x 1

Passive Pen AP50 x 1

Power Adapter x 1

Pen Holder x 1 (Replacement Nibsx8 inside)

3-in-1 Integrated Cablex1

Quick Start Guide x 1
