ORTUR 40*85cm Laser Master 3 Engraver Cutter with Rotary Roller Air Assist Set App Offline CNC Wood Cutting Engravging Machine

Name: ORTUR 40*85cm Laser Master 3 Engraver Cutter with Rotary Roller Air Assist Set App Offline CNC Wood Cutting Engravging Machine
Brand: artistryprofessionals
SKU: 14:175#OLM3 Set 1;200007763:201336106
Price: 1046.99 USD
Availability: InStock

Low stock: 8 left

$1,046.99 USD

~~$872.40 USD~~ $1,046.99 USD

Sale Sold out

Shipping calculated at checkout.

Color OLM3 Set 1 OLM3 Set 2 OLM3 Set 3

Ships From United States

Product variants

Quantity

SPECIFICATIONS

Brand Name: Ortur

ORTUR Model: OLM3

Model Number: Ortur Laser Master 3 Set

Certification: GS

Certification: EMC

Certification: CE

Certification: EMC

Certification: ce

Certification: GS

Is Smart Device: YES

Engraving Speed: 20000mm/min

Cutting Thickless 1: 20mm plywood

Cutting Thickless 2: 30mm acylic

Working Area: 400*850mm

Welcome to Ortur Outlet Store！

Features

Material: High precision CNC aluminum alloy frame

Power Adapter Output：24V/2A

Optical power: 10W

Electric power: 40w

Spot size: 0.05*0.01mm

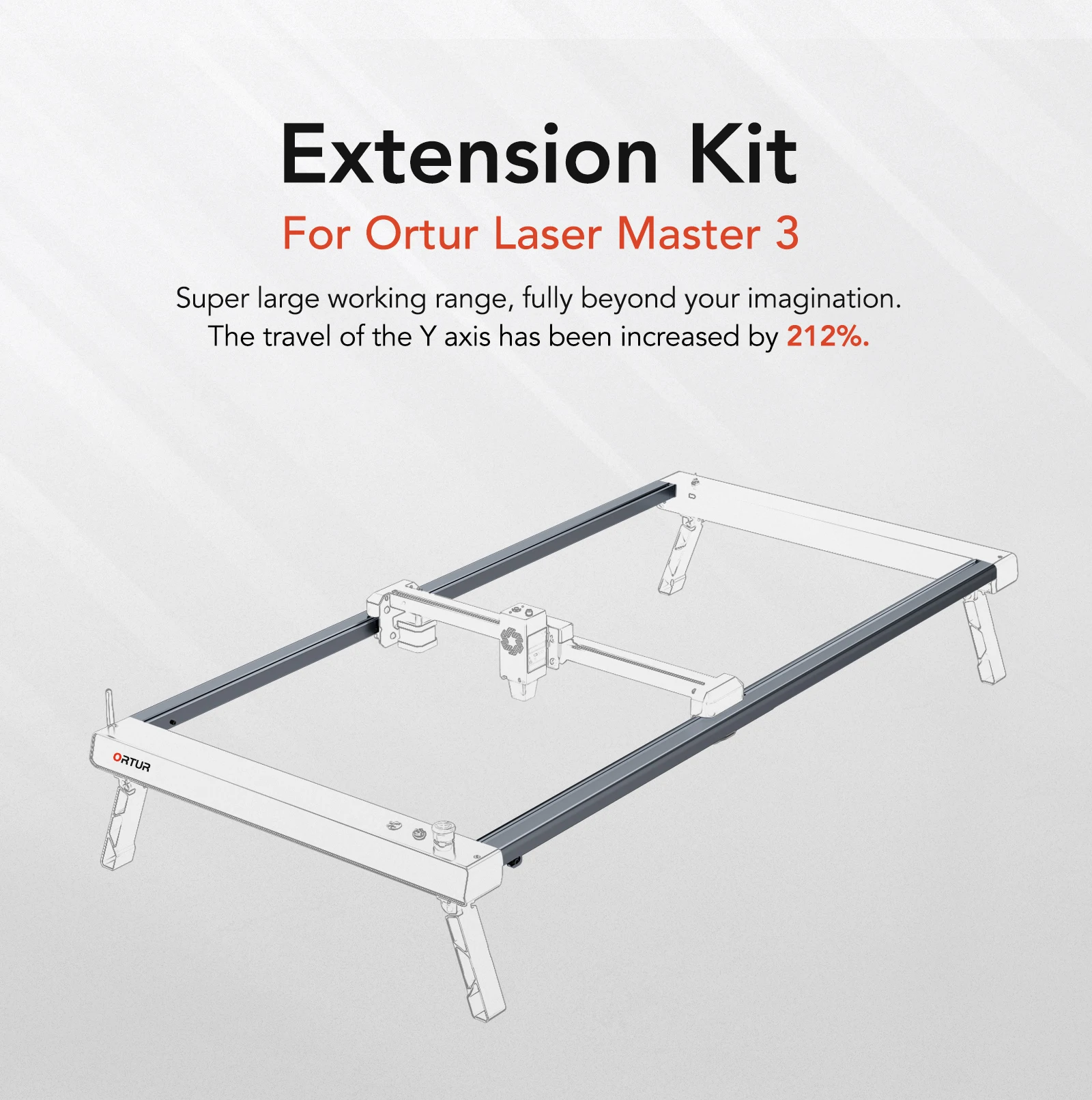

Extended Engraving area：400*850mm

Laser Wavelength:：455±5nm

Engraving speed: 0-20000mm/min

Engraving Material：plywood,wood,leather,paper,stone,granite,ceramic,tile,glass,metal,stainless steel, acrylic, leaves, rubber, mdf,etc

Cutting Material：Cardboard, wood,mdf,acylic,non-woven fabric, leather, plywood, pine board, some plastic boards, etc.

Maximum Cutting thickness: Cutting 20mm wood + 30mm acrylic

Motherboard: OLM3 V2.0

Processor: 240MHz main frequency

Firmware type: Support Ortur Laser 2.0 series firmware

Drive type: TMC2209 high-division motor silent drive

Operating Temp：-20℃-50℃

Support offline: WIFI, APP hotspot, SD card, USB data cable

Supported Operating Systems:

① LaserGRBL (free software) supports Windows XP, 7, 8, 10,11

② LightBurn (paid software, lightburnsoftware.com) supports Windows XP, 7, 8, 10,11, Mac OS, Linux

Input Format：JPG, JPEG, PNG, BMP, SVG, etc

Installation time: 10-20 minutes (the body only needs 4 screws to be assembled)

After-sales service: One year warranty + Lifetime Service

7 Safety Protection Function:

1.Equipment maintenance reminder function: remind users to perform certain maintenance operations on the machine

2. Integrated system detection function:After the engraving machine fails, guide and help the user to perform the function detection of the engraving machine

3. Instruction reminder function: The system will notify the working status and potential faults of the OLM3 engraving machine system at the first time

4. Laser light emission detection and protection: check the working state of the laser and the light emission time to avoid fire accidents caused by long-term laser irradiation

5. Position offset detection and protection: If the machine is found to be offset after engraving, the system will immediately stop and alarm to avoid wrong engraving.

6. Machine inclination detection and protection: If it is found that the machine has a change in inclination after engraving, or even overturns, the system will stop immediately

7. Current and voltage detection and protection: If abnormal voltage fluctuation or short-circuit current overload is found, the system will shut down immediately to avoid permanent damage to the engraving machine

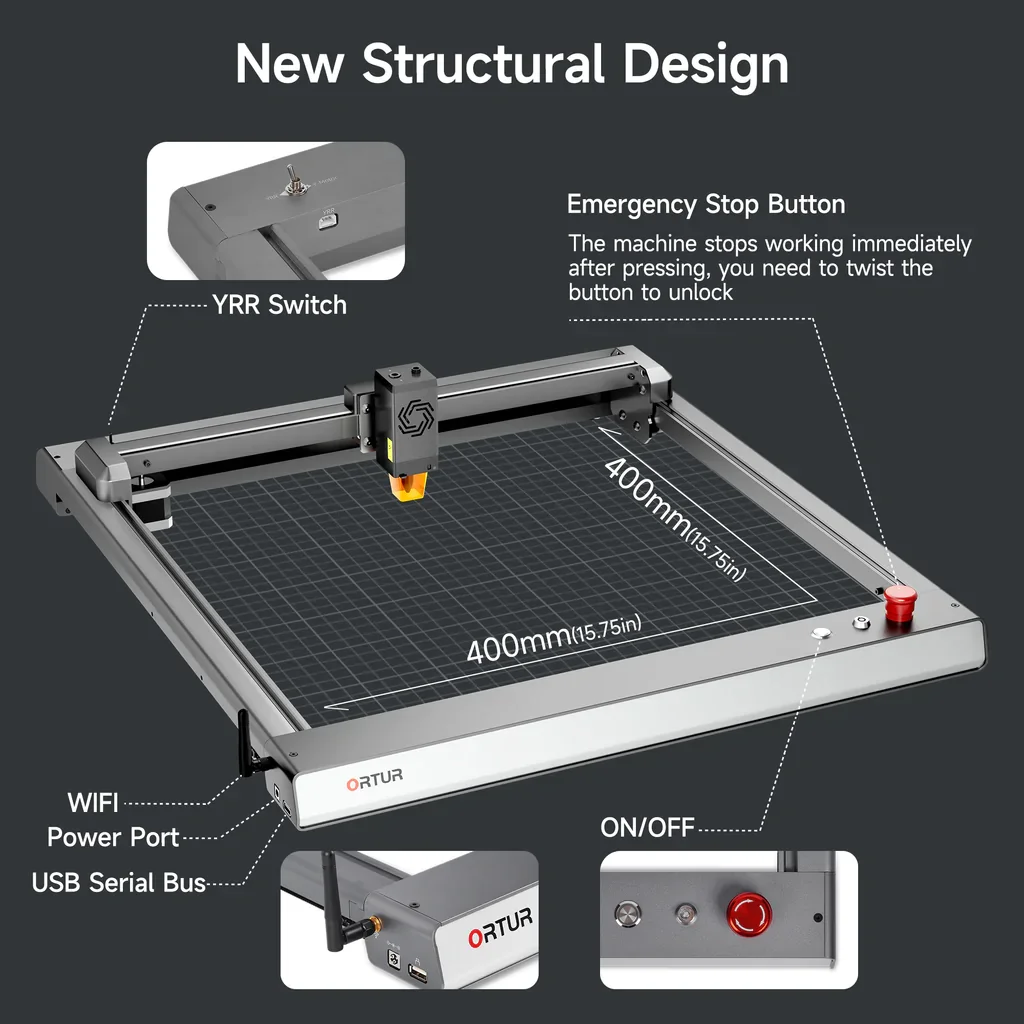

Main Function Definition

1.WIFI Aerial 2.Power Input 3.USB Port 4.Main Power Button(Status Light) 5.TF-Card

6.Upgrade Button(for Upgrading Firmware) 7.Reset Button 8.Input and Output Ports

9.Harness Interface 10.Y-axis Motor Interface 11.YRR transfer Switch 12.YRR motor Wire Port

SD CARD SLOT

Drag the NC file to the SD card, the machine starts working, and then you can turn off the computer or mobile phone without worrying about disconnecting, which is more convenient to print for a long time.
