SPECIFICATIONS



Brand Name: HUION



Hign-concerned Chemical: None

Tablet Width: 358mm

Tablet length: 604.2mm

Interface Type: USB

Pressure Levels: 8192

Screen Size(diagonal): 22"

Package: Yes

Type: Pen Tablet Monitor

Resolution Ratio: 5080lpi

Type: Digital Tablets

Screen Resolution: 2560 x 1440

Certification: CE

HUION Model: Kamvas 24

Contrast Ratio: 1000:1

Lamination: Non-Laminated

Anti-Glare Finish: Anti-Glare Film

Color Gamut: 120% sRGB

Color Depth: 16.7M (8bit)

Screen Tech: IPS In-Plane Switching

Response Time: 14ms

Video Interface: 3-in-1/full-featured USB-C

Net Weight: 5.6Kg (With Stand)

OS Support: Windows 7 or later, macOS 10.12 or later, Android

PenTech 3.0: PW517

Report Rate: 220PPS

Pressure Sensitivity: 8192 level

Tilt Function: -60 degree~+60 degree

Dimension: 604.2 x 358 x 28.3mm

Screen size: 23.8 inch

Stand: with Stand



23.8 Inch Large Screen for Switch & Android——Easy-to-carry and not just provides sufficient workspace for drawing, but also a larger screen for switch and android devices.

QHD Screen——With resolution of 2560x1440, enables clear and sharp picture presentation on the 23.8 inch panel, the contrast ratio of 1000:1 can improve the gradation of the picture.

Anti-glare Glass——The anti-glare etched glass and the screen are seamlessly laminated together to increase the screen transparency and decrease parallax. Reduce the reflection effectively and draw on this screen is like draw on paper.

120% sRGB color gamut——Rich colors and smooth color gradation can be realized with 120% sRGB color gamut and 16.7M(8 bit) display colors combined. You can enjoy accurate color presentation and smooth color gradient when drawing on the Kamvas 24.

178°Viewing Angle——Extra wide viewing angle of 178° ensures clear and beautiful image display effects without color shifts.

3-in-1/full-featured USB-C

3-in-1 USB-C(HDMI signal): the device can be used via connection to PC with a 3-in-1 cable(1.5m).

Full-featured USB-C(DP signal): the device can be used via connection to PC or Android device with a USB-C to USB-C cable, whereas extra power shall be supplied with a USB power adaptor(gauge: 5V, 3A), and a USB charger cable or the 3-in-1 cable.

Button OSD Menu——Convenient to adjust brightness, contrast, color temperature, preset.

With Adjustable Stand——You can ajust the angle that you feel comfortable and suitable for you, also it can relieve your neck paint.

Compatible System:

Windows 7 or later, macOS 10.12 or later, Android（USB3.1 DP1.2）

Compatible with Various Devices:

Android Phone, Android Tablet, Switch, Windows PC, Laptop

PenTech 3.0 Battery Free Pen——Boasts a better accuracy of ±0.3mm, users can spread their ideas accurately and naturally on the pen display just like on a piece of paper, also can use the digital pen to adjust the OSD configuration such as brightness and color temperature.

8192 levels of pressure sensitivity —— 8192 levels of pressure sensitivity enables every handwriting strokes input with different levels of pressure can be accurately sensed and therefore ensuring the smoothness and consistency of each line drawn.

Tilt Support——tilt support enables the cursor to follow your pen nib tightly even when the pen tilt in ±60°.

5080LPI Pen Resolution——Works together with the latest battery-free digital pen PW517 to ensure a more clear image with delicate details.

Pen Shortcuts——You can set two common functions (such as brush switching + right-click), which is more convenient to draw.

HUION V15 New Driver Function——Quick Menu (Radial Menu), Precision Mode, Pan & Scroll, Speed Adjustment in Mouse Mode, Proportional Working Area Adjustment, New Switch Function, Pressure Hold, Diagnostic Functions, Alert for Windows Device not Connected Exception.

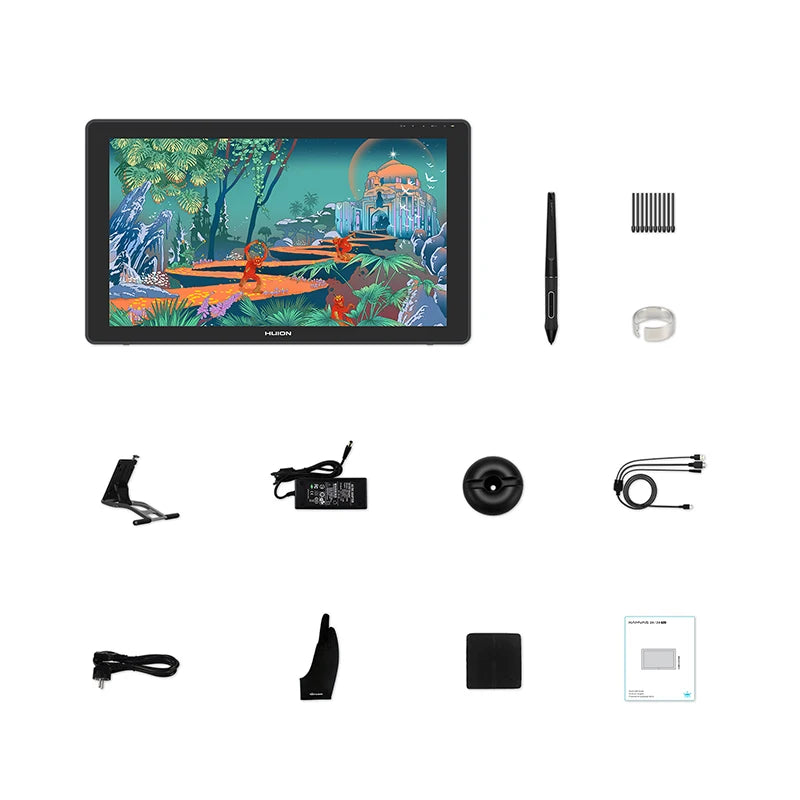

Package Content:

Kamvas 24 pen monitor, adjustable stand, digital pen, power adapter, AC cable, pen nib*10, nib clip, pen holder, 3 in 1 cable, glove, user manual, cleaning cloth.
