SPECIFICATIONS



Active Area: 476.64 x 268.11mm



Brand Name: HUION

Brightness: 220cd/㎡

Certification: CE

Color: Black

Color Gamut: 120% sRGB

Contrast Ratio: 1000:1

Digital Pen: PW517

Dimension: 546*323*19 - 26.7mm (Without Stand)

Display Color: 16.7M(8bit)

Full Lamination: NO

Input Voltage: AC 100-240V, 50/60Hz

Interface Type: USB

LCD Type: IPS

Notice: Kamvas 22 can not work alone, it needs to connect to a computer/laptop/Android device.

OS Support: Windows 7 or later, macOS 10,12 or later Android(USB3.1 GEN1,DP1.2), Linux

Output Voltage: 12V 3A

Package: Yes

Pen Technology: Battery-Free Electromagnetic Resonance

Pressure Levels: 8192

Report Rate: 266PPS

Resolution Ratio: 5080lpi

Response Time: 14ms

Screen Resolution: 1920 x 1080

Screen Size(diagonal): 21.5"

Sensing Height: 10mm

Surface Finish: Anti-glare matte film

Tablet Width: 323mm

Tablet length: 546mm

Type: Graphic Tablets,Digital Tablets

Video Port: Three-in-one USB-C, Full-featured Type-C

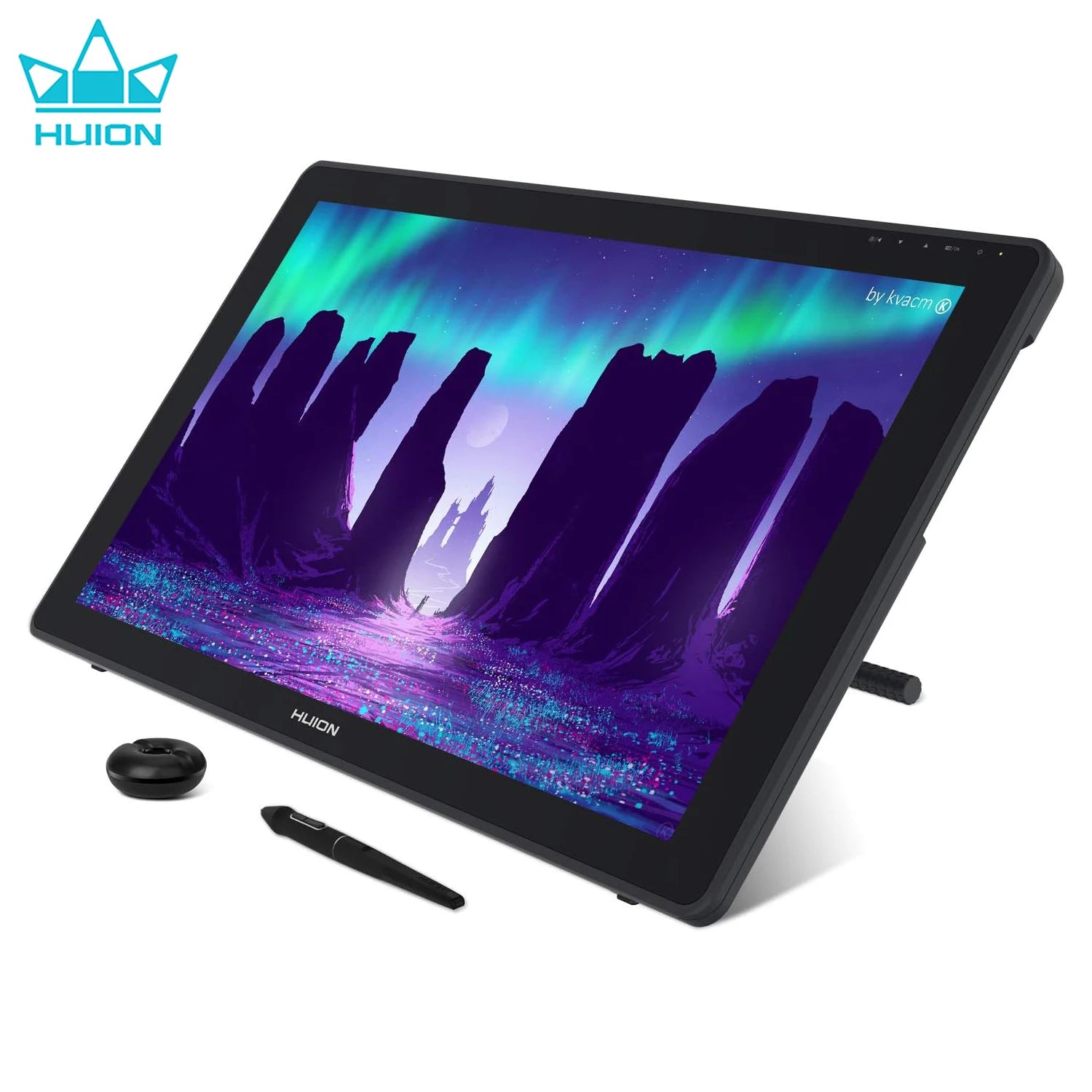

Kamvas 22 Digital tablet with 21.5 inch screen

About this item

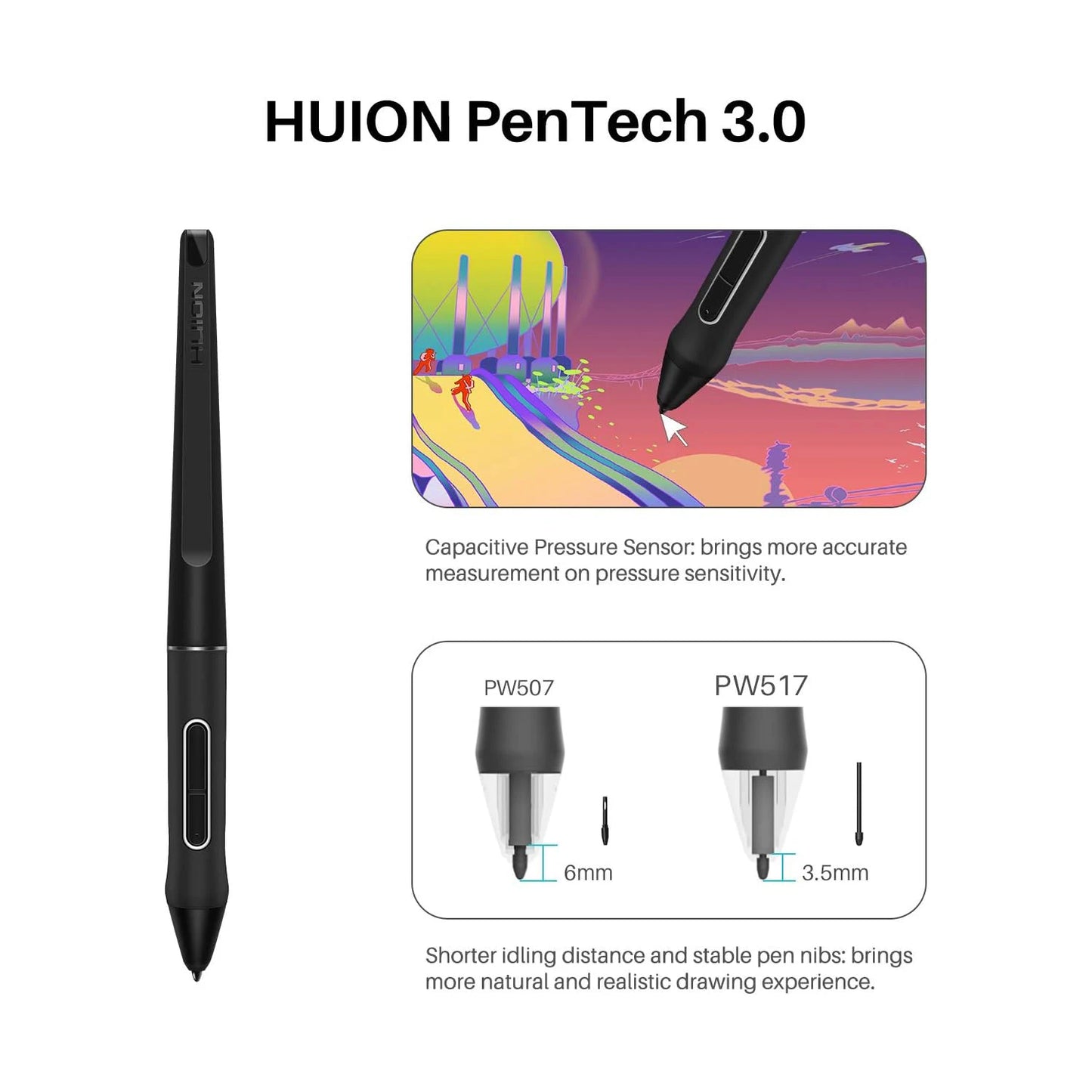

• Advanced Pen Technology：benefit from the Huion PenTec3.0, PW517 is optimized with Capacitive Pressure Sensor making it responsive to every pen movement with virtually no lags. Shorten pen nibs and better nib firmness make the pen tip barely bounce back to improve accuracy and reduce offset. Along with 8192 pressure levels, tilt response and lag free tracking, PW517 delivers the most accurate and natural pen performance.

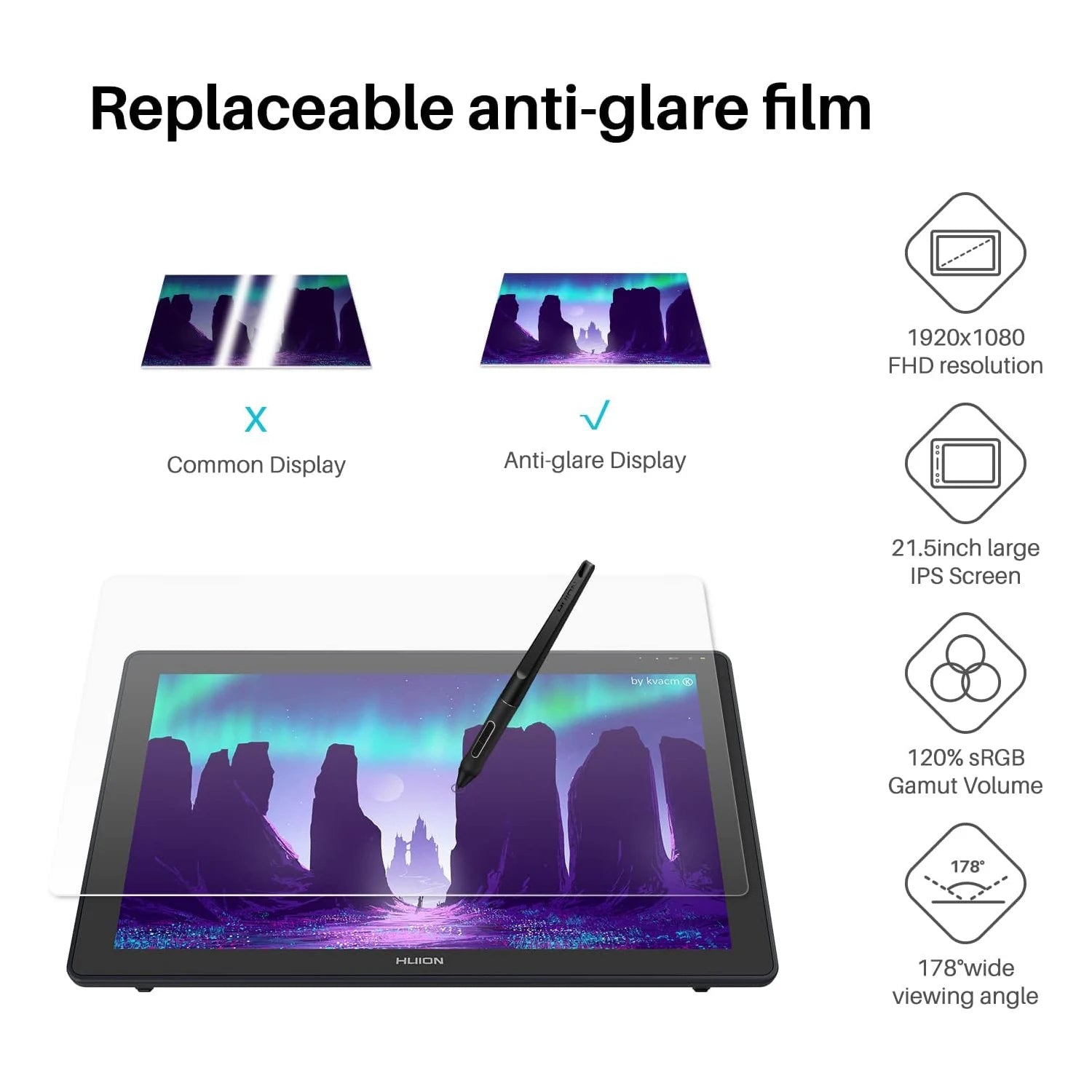

• Stunning 21.5inch Screen: the immersive 21.5inch large screen with 1960x1080p full HD resolution presents your creation in the depth of detail. The pre-applied anti-glare film minimizes glare and distracting reflection. The scratch-resistant surface feeling more like drawing on paper creates a good intuitive drawing experience.

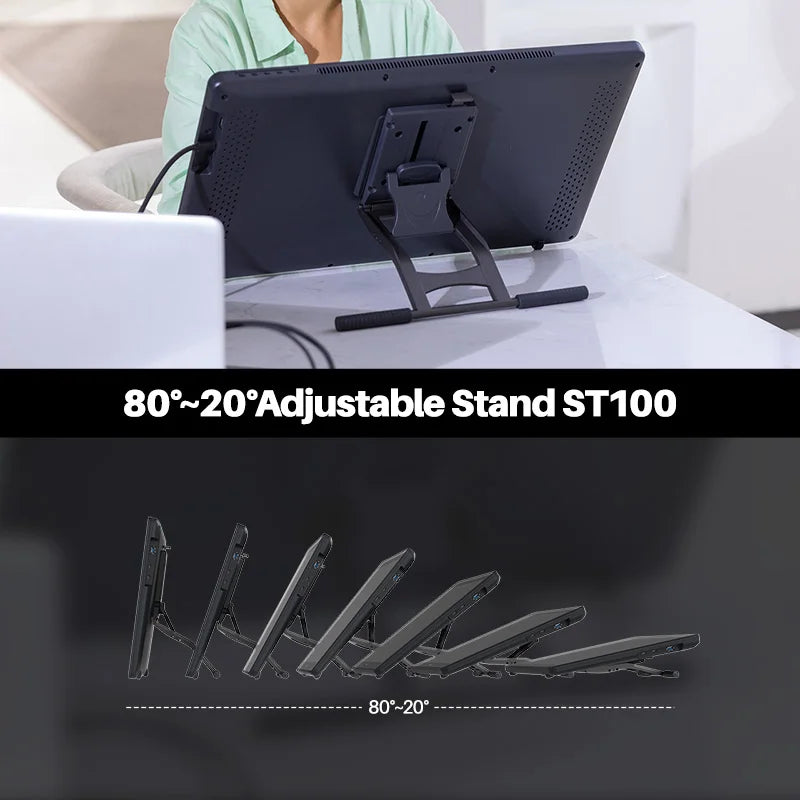

• Easy Cable Connection: you can connect Huion Kamvas 22 to your computer easily with the included convenient 3in1 Type-C cable or with the optional full-featured Type-C to Type-C cable. A USB-A port is added to connect flash disk, keyboard, mouse or other devices. The user-friendly connection design will bring you better convenience and higher efficiency.An adjustable stand is included to help you get into the perfect position to start your creation.

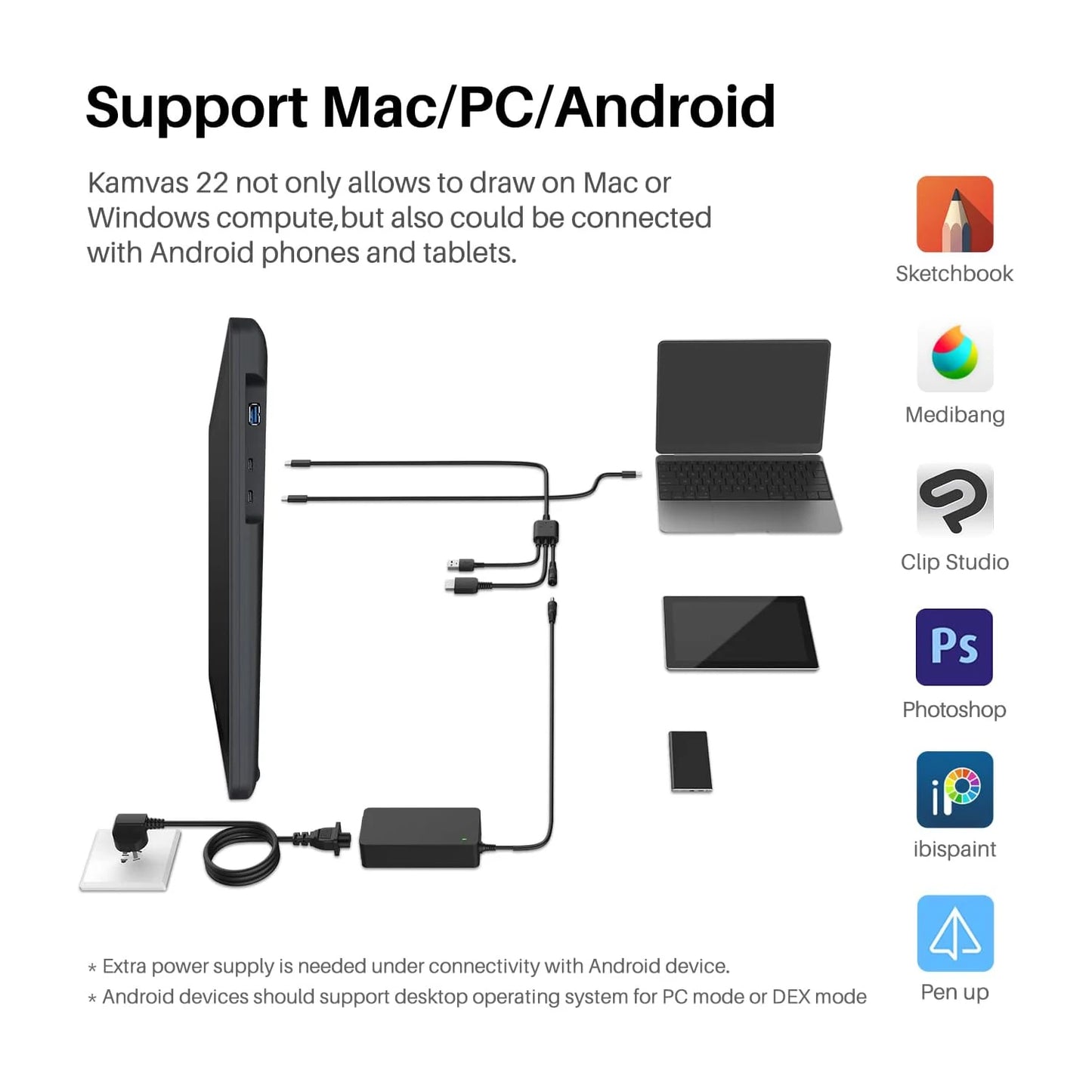

• Work with Mac/Windows/Android: Kamvas 22 could work with Mac(MacOS 10.12 or later) and Windows computer(Windows 7 or later), plus, you can also connect it to your android smartphones and tablets with full-featured USB-C cable to release your inspiration whenever and wherever you want. Note：Your android device is supposed to support USB3.1 GEN1 or DP 1.2.

• Vibrant Color Performance: boating with 120%s RGB color gamut volume and 16.7 millions colors, Kamavs 22 offers you exceptionally vivid and lifelike color performance. 178° wide view angle provides crisp pictures for your artwork from different angles. It is compatible with most drawing program such as Sketchbook, MediBang, etc.
