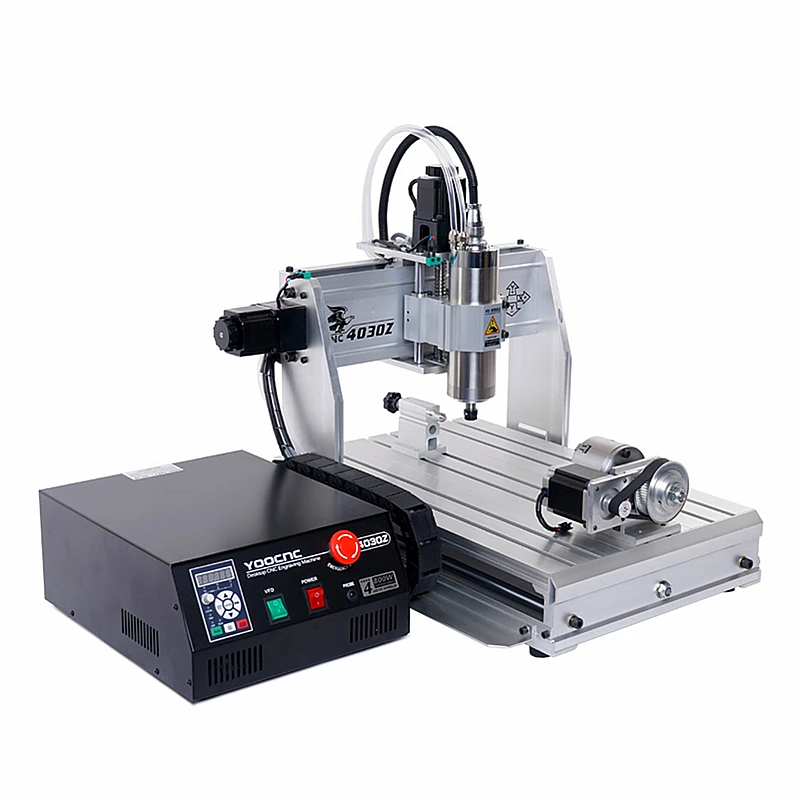

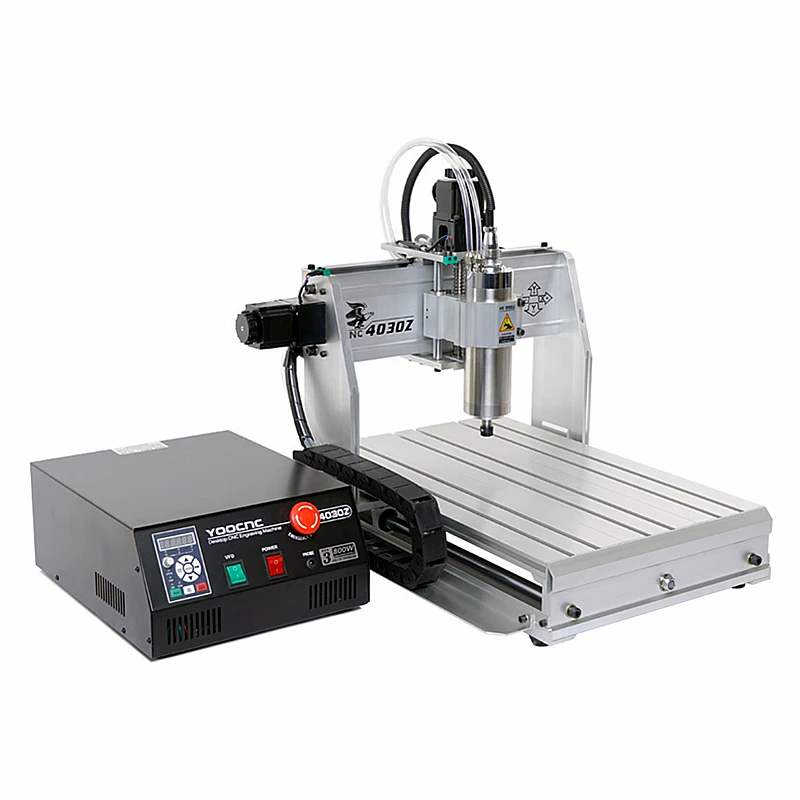

4 Axis CNC Router 6040 3040 8060 USB Port Milling Engraving Machine with Limit Switch for DIY Wood PCB PVC Acrylic Metal Carving

4 Axis CNC Router 6040 3040 8060 USB Port Milling Engraving Machine with Limit Switch for DIY Wood PCB PVC Acrylic Metal Carving

50 in stock

$1,516.99 USD
$1,263.60 USD $1,516.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size
Ships From

SPECIFICATIONS



Brand Name: YOOCNC



Model Number: 3040/6040/8060

CNC or Not: CNC

Is Smart Device: no

Controller: MACH3

Condition: New

Certification: CE

Spindle Collet: ER11/ER20 3.175mm

Spindle Power: 800W/1500W/2200W

Limit switch: YES

Tool auto-checking: YES

Interface: usb port

Type of screw: Ball screw 16mm, Pitch 5mm

Stepper motor and drive: two-phase hybrid stepping motor 57BYGH56-2.5A, 8 segments drive.

Repeat positioning Accuracy: 0.03mm

Maximum operating speed: 4000mm/min (Engraving speed: 300-3000mm/min)

Software Compatability: Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)









CNC Router Engraver 3040/6040/8060 800W/1500w/2200w lpt/USB Engraving Drilling and Milling Machine


Package has CD , CD include detail english manual and software  , it is very easy for operate the machine ,



please notice : if you want parallet port cnc machine , it is same price ,
after you place order , you tell me that you need parallet port machine！

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



Model and Technical Parameters

MODEL

3040/6040/8060

Attribute


3axis-USB


4axis-USB

Axis


3axis


4axis

Interface


USB port


USB port

Limit switch


yes


Yes

Tool auto-checking


Yes


Yes

Spindle Motor:


800/1500/2200W


800/1500/2200W

Type of screw


Ball screw


Ball screw

Weigh


56


60

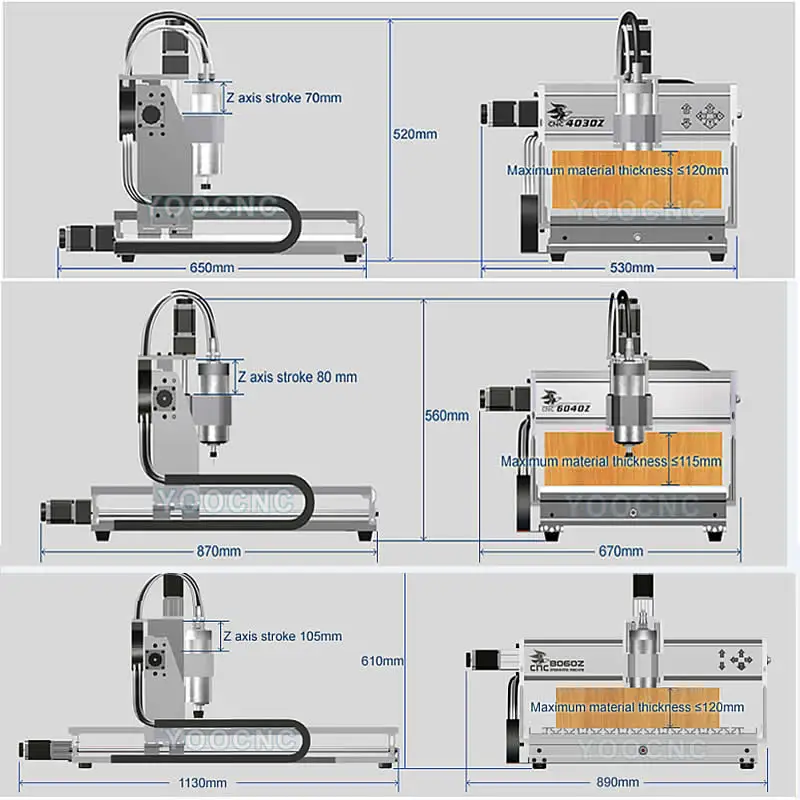

Machine Dimensions:

3040

6040

8060


650X530X520mm

870X660X520mm

1130X890X610mm

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

3040

6040

8060


395X285mm

575X375mm

790X580mm

Z-Axis Stroke:

3040

6040

8060


70mm,

80mm,

105mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤ 115mm

Rail type:

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw:

3040/6040 :Ball screw 1605, Pitch 5mm

8060: Ball screw (XZ axis 1605, Y axis 2005)

Spindle motor:

800W/1500W/2200W VFD water cooling spindle , 0-24000r/min

Collet type:

800W/1500W ER11,1/8"(3.175mm) Collet/ 2200W er20

Stepper motor and drive:

3040

6040

8060


two-phase hybrid stepping motor 57BYGH56-2.5A, 8 segments drive.

two-phase hybrid stepping motor 57BYGH76-3A, 8 segments drive.

60BYGH86-3.5A, Each axis independently driven

Maximum operating speed:

4000mm/min (Engraving speed: 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

Rotation Axis (4th Axis)

Description:

Center height: H = 60mm

Maximum turning diameter: ≤ 110mm

Deceleration ratio: 3:1

Stepper motor: NEMA23BHH76-3A

Weight: 4.2KG
